The Raleigh Transit Urban E-bike is a performance-oriented city bike that features a pedal-assist 250-Watt, 36 volt hub-drive motor that only kicks in when you’re pedaling the bike. The motor utilizes a cadence sensor that detects when the pedals are moving. With the 10.5Ah battery and controller fully integrated into the frame, this bike feels, rides, and looks like a standard bicycle, with all the added benefits of a pedal-assist E-bike. With assistance up to 32 km/h and 5 levels of assistance to choose from, using the LCD display on your handlebar, it is easy to control the amount of power output desired. The Transit E-bike is equipped with a durable 6061 aluminum frame, Microshift 7 speed drivetrain with Shimano freewheel, higher end alloy disc brakes, 27.5” x 2.4” puncture resistant tires, and front and rear lights. (Note: Bike still operates when battery is discharged).
  • Raleigh Transit Urban Electric Bike features a lightweight urban comfort aluminum frame
  • Pedal assist hub drive E-bike system with 5 assist levels and walk mode, 10.5 Ah battery in downtube, 250W, 36v motor, cadence sensor, and LCD display
  • 7-speed microshift shifting system including TS39 shifter, Mezzo rear derailleur, and Shimano freewheel
  • Integrated front and rear lights
  • Higher end disc brakes with full alloy levers
  • Prowheel alloy crankset with cartridge bottom bracket
  • Alloy stem, and ergonomic grips
  • Alloy double-wall rims with puncture resistant tires with reflective sidewalls
  • Tire size: 27.5" x 2.4" (69.8 x 6 cm)
  • Colour: Steel blue
  • Frame Style: Unisex
  • Frame Material: Aluminum
  • Frame Size (inches): 18" (46 cm)
  • Fork Type: Aluminum rigid with integrated crown
  • Hub Drive Motor: Shengyi 250 Watt, 36 Volt
  • Top speed: 32 km/h (note: bike can be ridden faster, but motor will only assist up to 32 km/h based on Government regulations in Canada)
  • Battery: 36 V, 10.5 Ah, 378 Wh lithium-ion with genuine LG cells
  • Distance per charge: 20-75 km - based on pedal-assist level, speed, rider weight, cargo weight, wind, hills, gear, tire pressure and road surface
  • Rear Suspension (if applicable): N/A
  • Wheel Size: 27.5"
  • Tire Size / Style: 27.5" x 2.4" Puncture resistant with reflective sidewalls
  • Rims: Alloy double-wall
  • Hubs: Rear - hub motor / threaded, Front - Formula alloy with Quick-Release
  • Shifters: Microshift TS-39 thumb tap
  • Speed: 7
  • Front Derailleur: N/A
  • Rear Derailleur: Microshift Mezzo
  • Cassette / Freewheel: Shimano freewheel
  • Crank: Prowheel alloy with cartridge bottom bracket
  • Chain: KMC 1/2" x 3/32"
  • Pedals: Alloy flats
  • Brakes: JAK-8 mechanical disc brakes with full alloy levers
  • Stem: Alloy 4-bolt
  • Headset: Integrated threadless, sealed bearing
  • Saddle Type: Performance sport
  • Grips: Semi-comfort TPE
  • Accessories: LCD display, kickstand, front and rear lights
  • Models may vary by store; Please note that given the surge in global demand, bike components may vary from what is indicated

For more details visit our Warranty Page

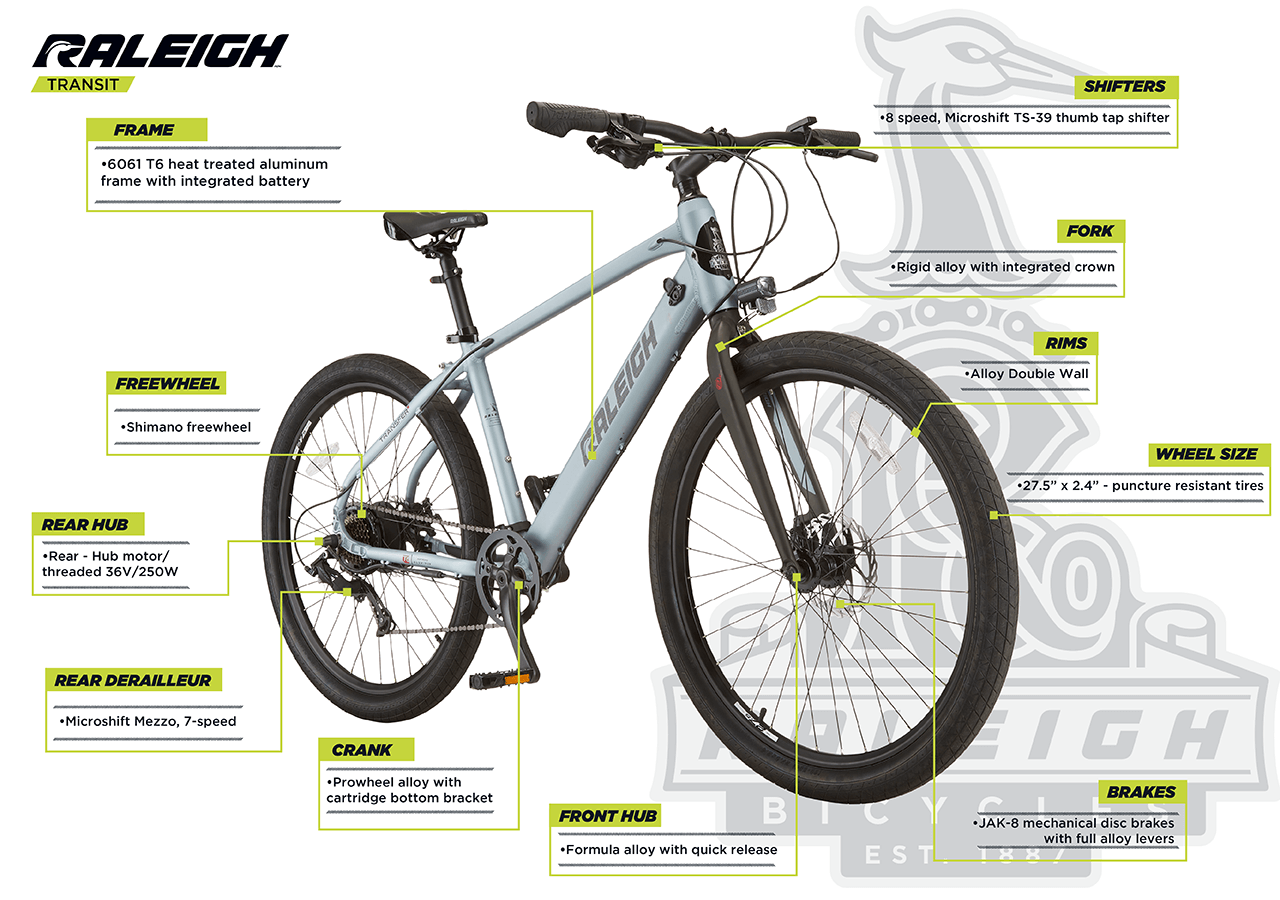

Transit - Urban Electric Bike, 27.5-in - infographic
