The Raleigh Dobson E-bike is an easy-cruising comfort bike that features a pedal-assist 250-Watt, 36 volt hub-drive motor that only kicks in when you’re pedaling the bike. The motor utilizes a simple cadence sensor that detects when the pedals are moving. With the 7.0Ah battery and controller fully integrated into the frame, this bike feels, rides, and looks like a standard bicycle, with all the added benefits of a pedal-assist E-bike. With assistance up to 32 km/h and 5 levels of assistance to choose from, using the LCD display on your handlebar, it is easy to control the amount of power output desired. The Dobson E-bike has a comfort-oriented design and is equipped with a durable 6061 aluminum frame, single-speed drivetrain, alloy disc brakes, swept-back handlebars, alloy adjustable stem, and comfort saddle. (Note: Bike still operates when battery is discharged).
Raleigh Dobson Men's Electric Bike is a hub drive system e-bike with battery in downtube, 250W motor with cadence sensor and LCD display
Lightweight aluminum frame with custom headtube and downtube
Integrated headset
Disc brakes with full alloy levers
Alloy crank with cartridge BB set and alloy adjustable stem
Alloy double-wall rims with alloy hubs with reflective sidewalls
Tire size: 700C x 45C
Colour: White
Frame Style: Mens
Frame Material: Aluminum with integrated battery
Frame Size (inches): 19" (48 cm)
Fork Type: Rigid
Hub Drive Motor: Shengyi 250 Watt, 36 Volt
Top speed: 32 km/h (note: bike can be ridden faster, but motor will only assist up to 32 km/h based on Government regulations in Canada)
Battery: 36 V, 7 Ah, 252 Wh lithium-ion with genuine LG cells
Distance per charge: 15-60 km - based on pedal-assist level, speed, rider weight, cargo weight, wind, hills, tire pressure and road surface
Rear Suspension (if applicable): N/A
Wheel Size: 700C
Tire Size / Style: 700C x 45C with reflective strip
Rims: Alloy double-wall

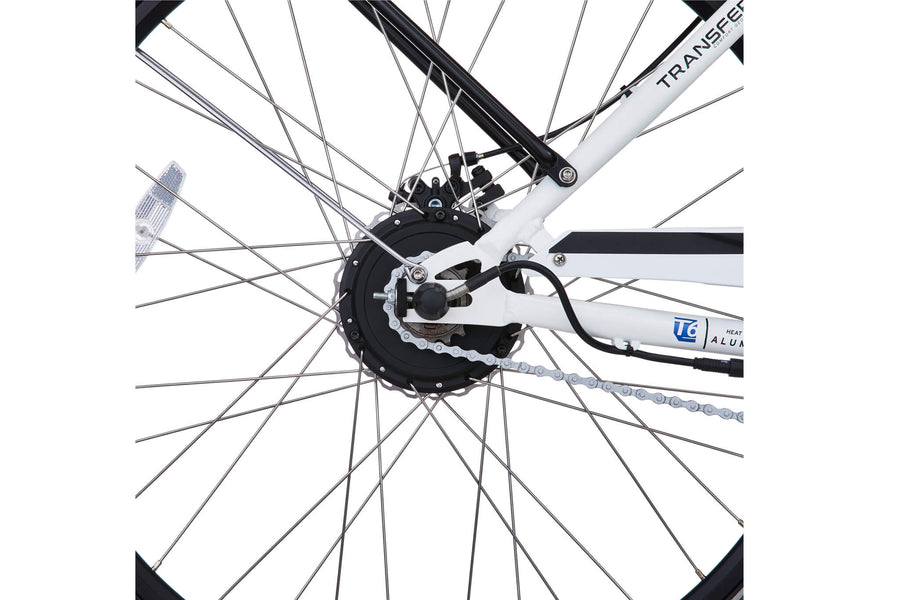

Hubs: Rear - hub motor / threaded, Front - Alloy with Quick-Release
Shifters: N/A
Speed: 1
Front Derailleur: N/A
Rear Derailleur: N/A
Cassette / Freewheel: N/A

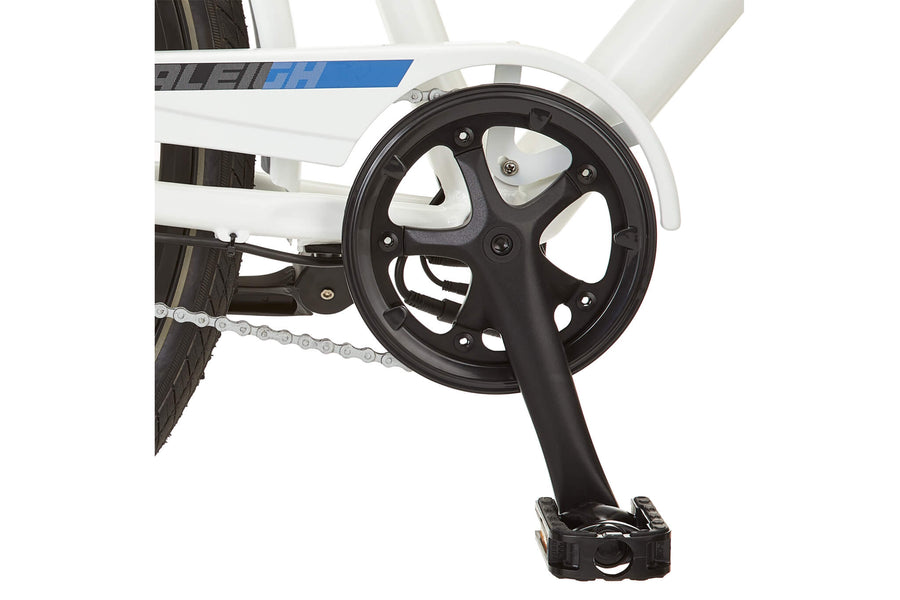

Crank: Prowheel alloy with cartridge bottom bracket
Chain: KMC 1/2" x 1/8"
Pedals: Alloy flats

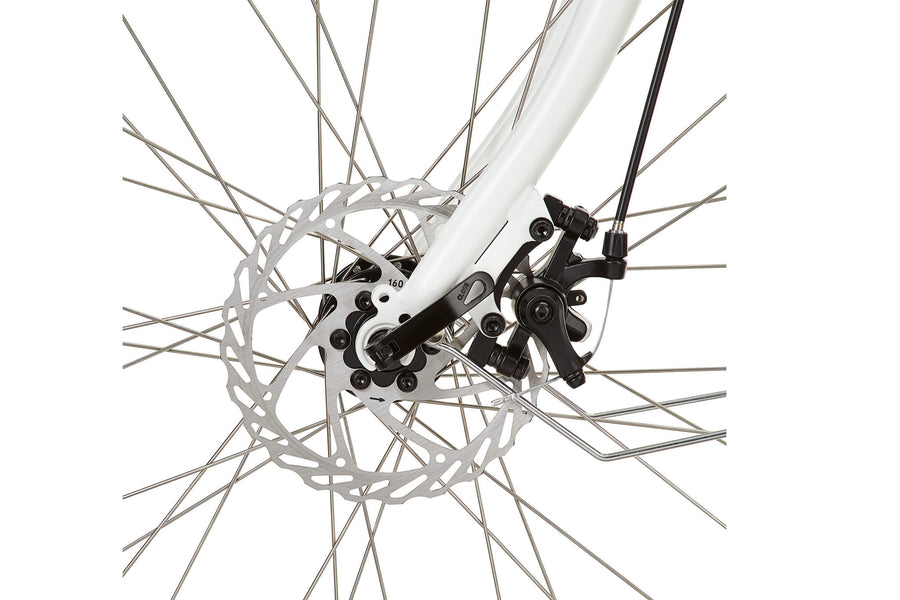

Brakes: Alloy mechanical disc brakes with full alloy levers
